Description

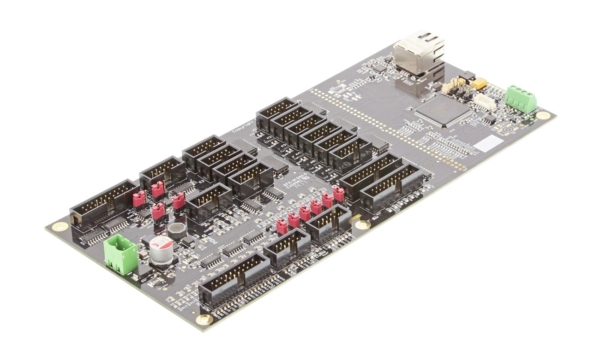

A powerful 6 axis controller in our Pro-line of CNC controllers. High step frequency, up to 400kHz, and lots of I/O to build professional CNC equipment. Through its Modbus-RTU interface the controller can be expanded with more functionality.

By using industry-standard box header (IDC) connectors it’s possible to simply connect the board to own hardware interfaces. Optional also additional breakout boards are available to provide you with the ability to wire each in and output directly to the controller.

It is powered by 24V making it simple to integrate into an industrial environment in which 24V is common. Also, almost all inputs are also suitable for 24V, whereby it is also possible to configure some inputs for an NPN or PNP application.

For 3D printing applications, 4 separate outputs are available that share one axis output which can be controlled separately through AUX outputs, giving the possibility to control up to 4 extruders. And finally, the CNC7xx series has the unique ability to control the PWM output during the movement of the axis, making it especially useful for laser applications.







Additional information

Weight 0,229 kg
AUX outputs

10
Analog inputs

8
PWM Ouput

8
Analog output (0-10V)

2
Modbus RTU Interface

Yes
Dimensions

230x107mm
Product line

Pro
Product type

Controller

Downloads

Manuals

EdingCNC may provide Product information, including technical information, specifications, recommendations, literature, and other materials (collectively “Product Information”) for Customer’s convenience in Customer’s selection of Products. The accuracy or completeness of Product Information is not guaranteed and is subject to change without notice. No license under any EdingCNC or third party intellectual property rights is granted or implied with this Product Information. Customer is solely responsible for evaluating and selecting Products and determining whether each Product is fit for a particular purpose and suitable for Customer’s use and method of application. Products are not manufactured to any Customer requirements or specifications unless expressly agreed to in writing by EdingCNC. Products that are sold for Customer’s use or consumption may not be repackaged, resold, or redistributed in any manner without EdingCNC’s prior written consent.

CNC760

6-Axis Ethernet 400kHz Modbus-RTU 24V Lot's of I/O

€ 712,10 (ex. VAT)

6-axis CNC controller. Numerous I/O to meet many demanding requirements. Expandable through Modbus-RTU interface.

The price of the full software license is included in the purchase price.

Ethernet Cross Cable

Ethernet Cross Cable 3m/10 feet

For a reliable connection between our Ethernet solutions and a PC, a cross-over cable is requiered.
These network cables are high quality cables with double shielding keeping out any external interference.

CNC760 DIN Rail Enclosure

CNC760 Breakout Board

If you prefer to use separate wires to hook up your CNC760 this breakout board will help you. Simply plugin this on top of the CNC760 and start wiring your controller.

Before mounting it, please check this video:



CNC760 Axis Breakout Board

With this breakout board you can now also simply connect the axis and extruder outputs of the CNC760 with wires.

CNC760 Line Driver Axis Breakout

This axis breakout features differential outputs. Making the signals less susceptible to EMI interference.

The CNC760 can produce a step frequency of up to 400kHz. Some motor drivers only accept these higher
frequencies when using differential signals to ensure proper signal integrity.



SKU: 10.0006
