Description

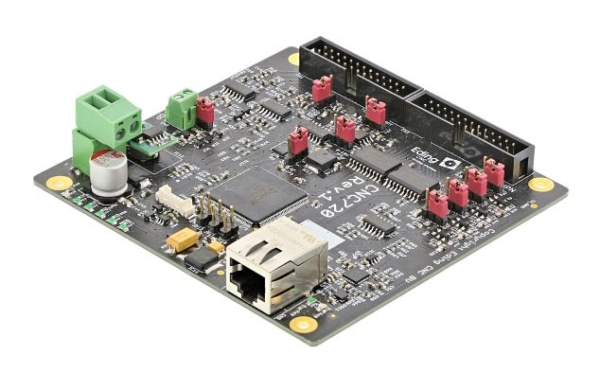

The CNC720 CNC controller is a 4-axis controller with a maximum step frequency of 400 kHz. This controller can be used and configured entirely via Ethernet. In addition, it has a Modbus-RTU interface through which it is possible to expand its functionality.

It is powered by 24V making it simple to integrate into an industrial environment in which 24V is common. Also, almost all inputs are also suitable for 24V, whereby it is also possible to configure some inputs for an NPN or PNP application.

The controllers feature an E-STOP input that switches off hardware outputs through hardware in the event of an E-STOP situation, giving it extra safety*. And finally, the CNC7xx series has the unique ability to control the PWM output during the movement of the axis, making it especially useful for laser applications.

The board features 2 standard box headers (IDC) giving the possibility to simply connect the board to custom boards. For easy connecting wires a separate breakout board exists. And for quick installation a custom  DIN rail enclosure is available.

* The use of this feature does not imply that no external safety precautions are not necessary.

Additional information

Weight 0,131 kg
Power

24V
Dimensions

TODO
Axes

4 Axes
Max. step freq.

400kHz
Axes connection

Shared IDC
Interface

Ethernet
Modbus RTU Interface

Yes
AUX inputs

–
Analog inputs

2, 0-3.3V
Alarm input

Max. 24V, NPN/PNP, 1
External error input

1, Max. 24V, NPN/PNP
E-Stop input

1, NPN, Max. 5V
Start/run input

1, NPN, Max. 5V
Pause input

1, NPN, Max. 5V
Home inputs

4, NPN/PNP, Max. 24V
Probe input

1, NPN/PNP, Max. 24V
Spindle pulse input

1, NPN, Max. 5V
Spindle Quadrature input

–
Mist output

1, Open-collector
Flood output

1, Open-collector
Brake output

–
AUX outputs

1, Open-collector
PWM Ouput

1, Combined with 0-10V output, Open-collector
Analog output (0-10V)

1, Combined with PWM output
E-Stop output

–
Spindle/tool output

1, Open-collector
Tool Direction output

–
WD output

–
I2C output

–
Heartbeat output

–
SysReady output

1, Open-collector
Breakout board

Yes
External status indicators

–

Downloads

Manuals

EdingCNC may provide Product information, including technical information, specifications, recommendations, literature, and other materials (collectively “Product Information”) for Customer’s convenience in Customer’s selection of Products. The accuracy or completeness of Product Information is not guaranteed and is subject to change without notice. No license under any EdingCNC or third party intellectual property rights is granted or implied with this Product Information. Customer is solely responsible for evaluating and selecting Products and determining whether each Product is fit for a particular purpose and suitable for Customer’s use and method of application. Products are not manufactured to any Customer requirements or specifications unless expressly agreed to in writing by EdingCNC. Products that are sold for Customer’s use or consumption may not be repackaged, resold, or redistributed in any manner without EdingCNC’s prior written consent.

CNC720

4-Axis Ethernet 400kHz Modbus-RTU 24V

€ 470,90 (ex. VAT)

A 4-axis CNC controller in our Pro-line. A basic CNC controller with a step frequency up to 400kHz, 24V powered, reliable ethernet interface, and expandable through a Modbus RTU interface.

The price of the full software license is included in the purchase price.

Ethernet Cross Cable

Ethernet Cross Cable 3m/10 feet

For a reliable connection between our Ethernet solutions and a PC, a cross-over cable is requiered.
These network cables are high quality cables with double shielding keeping out any external interference.

CNC720 DIN Rail Mount

To easily mount the CNC720 Controller on a DIN rail you can slide it into this
housing and simply mount it on the DIN rail.

CNC720 Breakout Board

If you prefer to use separate wires to hook up your CNC720 this breakout board will help you. Simply plugin this on top of the CNC720 and start wiring your controller.

SKU: 10.0010
